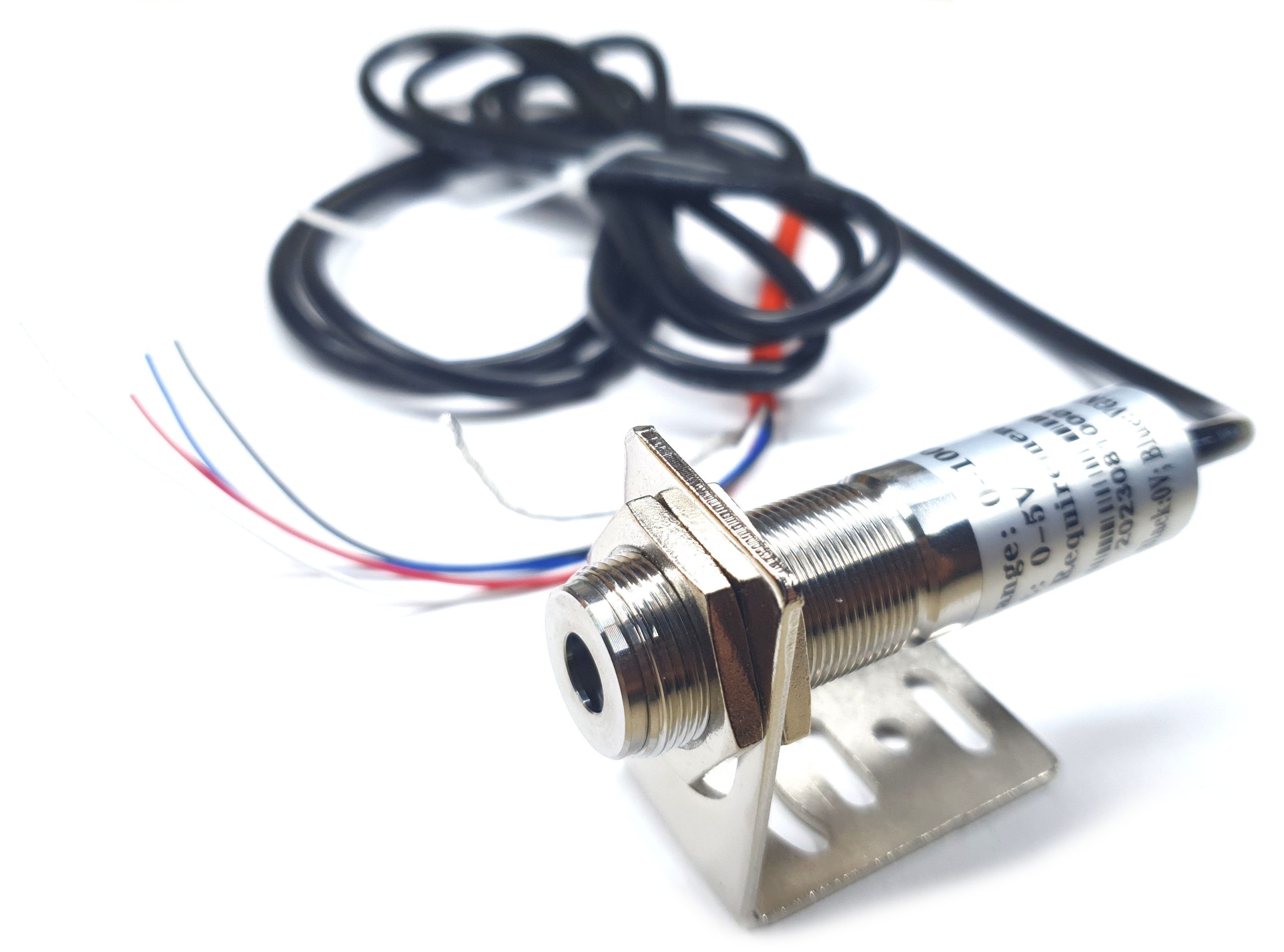

The infrared temperature sensor can be used to monitor high temperatures without contact with hot parts. The example use cases are:
- Eddy current absorber coils temperature monitoring
- Eddy current absorber rotor temperature monitoring
- Vehicle tire temperature monitoring
Monitoring these temperatures can save you from absorber damage or vehicle tire failure.
Specification:
- Temperature range: 0 – 1000°C ( 0 – 600°C when supplied from 5V )
- Protection class: IP65
- Spectral range: 8-14um
- Emissivity: 0.95
- Temperature resolution: 0.1°C
- Operating temperature: 0 – 60°C
- Humidity: 10% – 95% non condensing
- Cable length: 2m

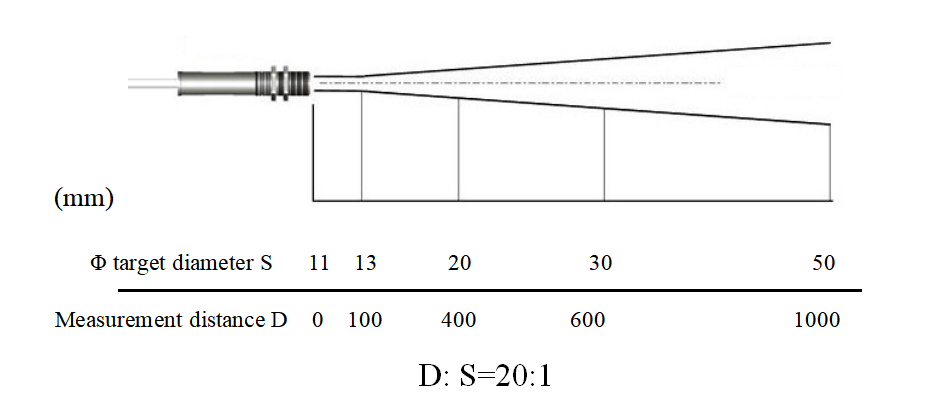

- Optical resolution: 20:1
- Measurement accuracy: 1% or 1°C (larger value)
- Repeatability: 0.5% or 1°C (larger value)

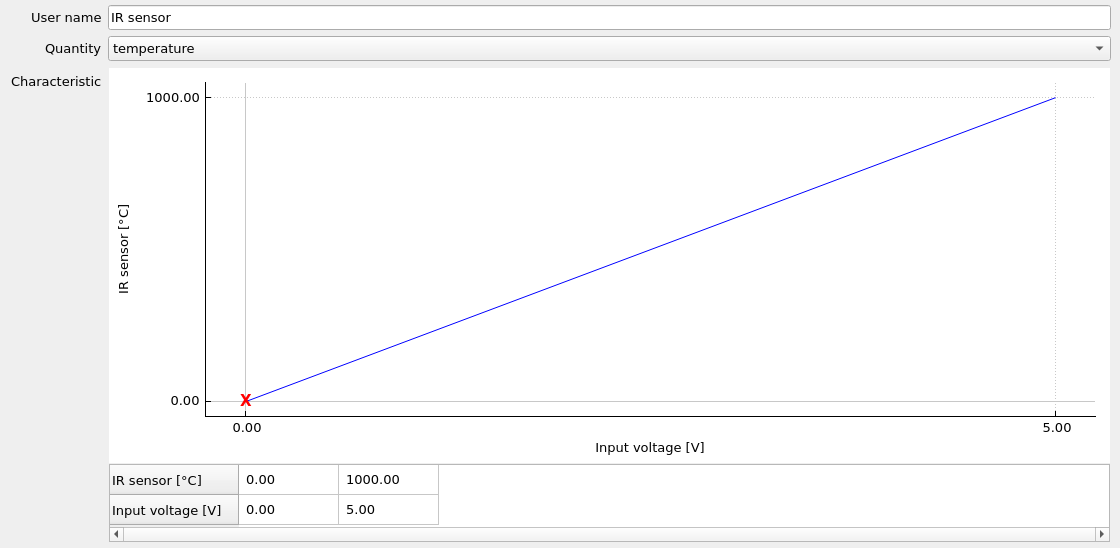

- Output signal: 0 – 5V
- Response time: 200ms
- Power supply: 5 – 36 VDC
- Enclosure: Stainless steel
Connection to analog input on DC series controller:
- Black, blue – Analog input GND (-)
- White – Analog input Signal (S)
- Red – Analog input +5V (+) or +12V from other connector for full range
- Stripped – Shield – connect to GND
